Development, intra-rater and inter-rater reliability of “BalanceGrid and WalkMeter”, clinically feasible tools to measure limits of balance stability and spatial-temporal gait parameters in people post stroke.

Suruliraj Karthikbabu; Shikha Chaudhary; Nafeez Syed; M Chakrapani; Sailakshmi Ganeshan; E Ratnavalli

doi:10.34058/njmr.v18i2.130

Suruliraj Karthikbabu School Of Allied Health Sciences, Manipal University
Shikha Chaudhary School Of Allied Health Sciences, Manipal University
Nafeez Syed School Of Allied Health Sciences, Manipal University
M Chakrapani Kasturba Medical College, Manipal University, Mangalore
Sailakshmi Ganeshan Physiotherapy, KMC, Manipal University, Mangalore
E Ratnavalli Neurology, Manipal Hospital, Bangalore

DOI: https://doi.org/10.34058/njmr.v18i2.130

Keywords: Reliability, Internal consistency, Balance, Gait, Stroke

Abstract

Background: Laboratory tools such as force platform, posturography, and Gaitrite provide precise and accurate information, but are limited in availability due to their high cost and required skilled work force. This necessitates the need for relatively inexpensive, simple and clinically accessible tools to measure the limits of stability and spatial-temporal gait parameters in people post stroke and to establish psychometric properties.

Objective: To develop and determine the internal consistency, intra-rater and inter-rater reliability of BalanceGrid and WalkMeter systems in people post stroke.

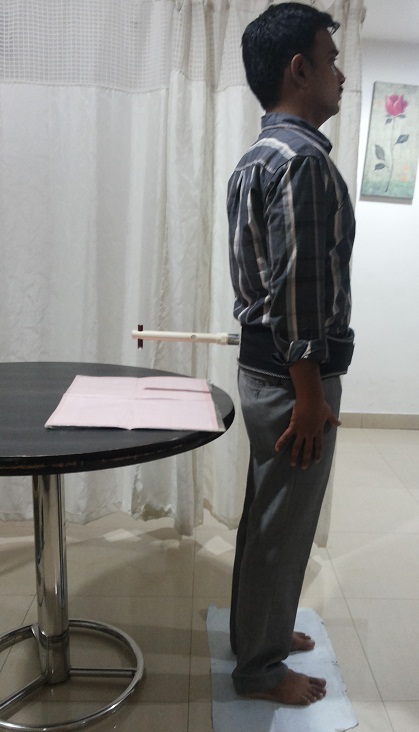

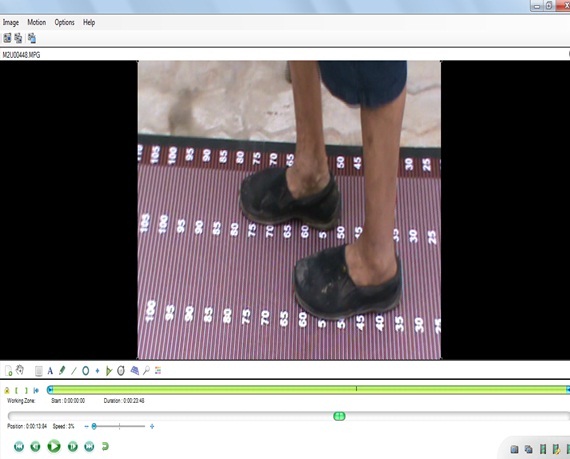

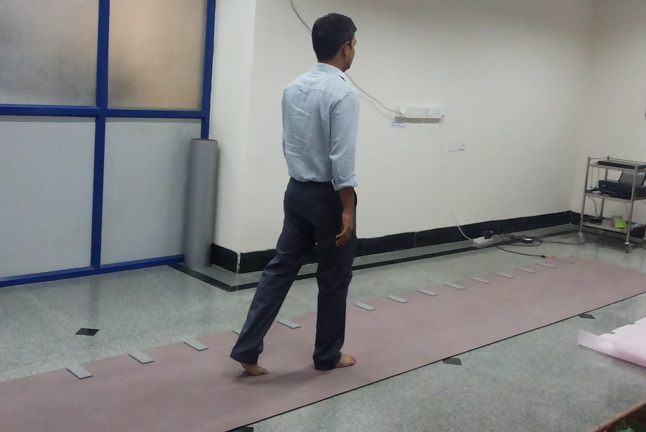

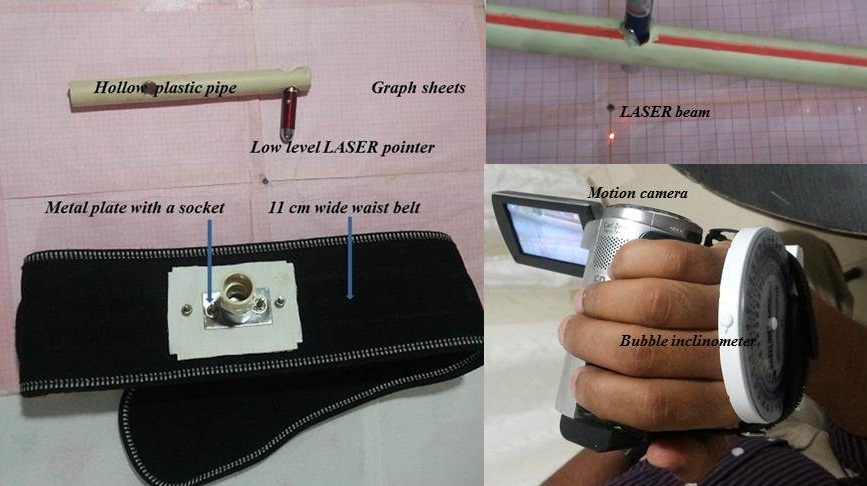

Methods: The BalanceGrid system consists of subject and grid interface and the WalkMeter system consists of a 10-meter walkway, a video camera and motion picture analysis software. The applicability of the tools was tested in 40 age-matched healthy volunteers. The internal consistency (Cronbach’s alpha), intra-rater and inter-rater reliability (ICC) of the BalanceGrid and WalkMeter tools were established in 47 people post stroke by two raters.

Results: Internal consistency reliability of BalanceGrid and WalkMeter systems was 0.94- 0.99 and 0.86-0.99, respectively. Both the clinical tools showed high intra-rater and inter-rater reliability, with an ICC of 0.82-0.99.

Conclusion: With the high reliability of the BalanceGrid and WalkMeter systems, we recommend these tools to screen and measure the balance and gait in people post stroke.

References

Bohoman, RW., Lackin, PA.,1985. Lower extremity weight bearing under various standing conditions in independently ambulatory patients with hemiparesis. Physical Therapy, 65,1323-1325.

Brandtser, ME., Briun, HD., Gowland, C., Clark, BM., 1983. Hemiplegic gait: analysis of temporal varibales. Archieves of Physical Medicine and Rehabilitation, 64,583-87.

Caldwell, C., MacDonald, D., MacNeil, K., McFailand, K., Turnbull, TI. Wall, JC.,1986. Symmetry of weight distribution in normals and stroke patients using digital weigh scales. Physiotherapy Theory and Practice ,2,109-116.

Casey, DK., Michael, S., Malco, NW. 1998. Gait analysis In: Rehabilitation Medicine. Principle and practice. 3rd edition. Philadelphia: Lippincott-raven, 167-86.

Chitralakshmi, K., Richard, RN., Steven, AK. 2009.Variability in spatiotemporal step characteristics and its relationship to walking performance post stroke. Gait and Posture, 29,408-414.

Clarissa, BO., Italo, RT., Norberto, AF., Mario, EG., Adri, B., 2005. Balance control in hemiparetic stroke patients: main tools for evaluation. Journal of Rehabilitation Research and Development, 45, 1215-1226.

Dickstein, R., Nissan, M., Pillar, T., Scheur, D., 1984. Foot-pressure ground pressure pattern of standing hemiplegic patients, major characteristics and patterns of improvement. Physical Therapy, 64, 19-23.

George, C., Carolynn, P., Felix, E., 2005. Gait differences between individuals with post-stroke hemiparesis and non-disabled controls at age matched speed. Gait and Posture, 22, 51-56.

Goldie, PA., Matyas, TA, Evans OM., 2001. Gait after stroke: Initial deficits and changes in temporal patterns for each gait cycle. Archives of Physical Medicine and Rehabilitation, 82 (8), 1057-1065.

Harvill LM, 1991. An instructional module on standard error of measurement. International Topics in Educational Measurement, 33-41.

Henson RK. 2001. Understanding internal consistency reliability estimates: A conceptual primer on coefficient alpha. Measurement and evaluation in counseling and development, 34(3),177-189.

Karthikbabu, S., Rao, BK., Manikandan, N., Solomon, J., Chakrapani, N., Akshatha, N., 2011. Role of trunk rehabilitation on trunk control, balance and gait in patients with chronic stroke: a pre-post design. Neuroscience and Medicine, 2,61-67.

Mcdonough, AL., Batauria, M., Chen, FC. Kwan, S., Ziai, J., 2001. The validity and reliability of the Gaitrite system measurements: A preliminary evaluation. Archives of Physical Medicine and Rehabililation, 82,419-425.

Mizrahi, J., Solzi, P., Ring, H., Nisell, R., 1989. Postural stability in stroke patients: vectorial expression of asymmetry, sway activity and relative sequence of reactive forces. Medical and Biological Engineering and Computing, 27,181-190.

Oberg, T., Karsznia, A., Oberg, K. 1993. Basic gait parameters: reference data for nor-mal subjects; 10-79 years of age. Journal of Rehabilitation Research and Development, 30,210-23.

Olrey, SJ. Griffin, MP., McBride, ID,.1994. Temporal, Kinematic and kinetic variables related to gait speed in subjects with hemiplegia: a regression approach. Physical Therapy, 74,872-885.

Olrey, SJ. Richards, C., 1996. Hemiparetic gait following stroke: Part I: characteristics. Gait and Posture, 4,136-148.

Page, SJ, Garner C., 2005. Psychmetric evaluation of the motor readiness questionnaire for stroke. Clinical Rehabilitation,19(5),531-537.

Patterson, KK. Parafianowicz, I., Donells, CJ., Closson, V., Verrier, MC., Staines, WR., et al.2008. Gait asymmetry in community ambulating stroke survivors. Archives of Physical Medicine and Rehabilitation, 89,304-310.

Sturnicks, DL. Arnold, R., Lord, SR., 2011.Validity and reliability of the swaymeter device for measuring postural sway. BMC Geriatrics,11,63-69.

Wall, JC. Turnbull, GI., 1986. Gait asymmetries in residual hemiplegia. Archives of Physical Medicine and Rehabilitation, 11,95-103.

Weir JP. 2005. Quantifying test retest reliability using the intraclass correlation coefficient and the SEM. Journal of Strength and Conditioning Research, 19(1),231-40.
